Features
- Causes no damage to the pipe being inspected.
- Not affected by reflectance, color, or lighting. (Advantage over optical inspection)
- Not affected by oil or other substances on pipe surfaces. (Advantage over optical inspection)
- Ignores surface flaws.
- Capable of high-speed inspection (approx. 4.0 seconds).
- Includes a non-contact sensor.(A cam follower or other component is used to maintain the distance between the sensor and the pipe being inspected.)
Inspection method
- Magnetic property data is obtained from the circumferential magnetic field as the pipe is rotated one turn.
- The physical properties are determined from the data obtained.
- The physical property values differ between the base material and seam portions, with the seam portion being the peak.
- The motor positions the pipe according to the angle corresponding to the peak position.
Note :
Materials that can be inspected: Steel plate, SUS440Materials that cannot be inspected: Aluminum, copper, SUS304, etc.
Example of operational use

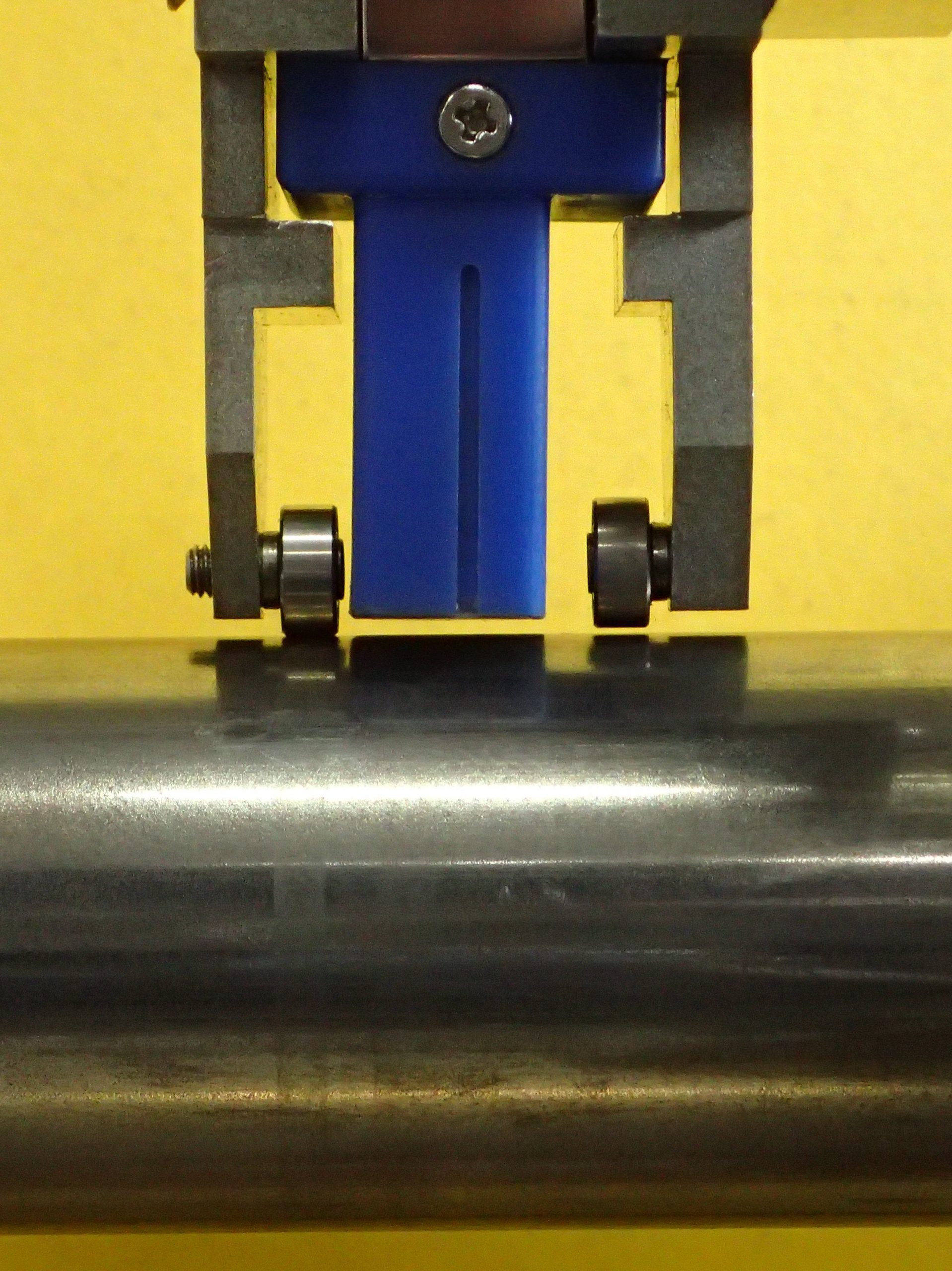

Weight of sensor and bracket is 350g(12.3oz).

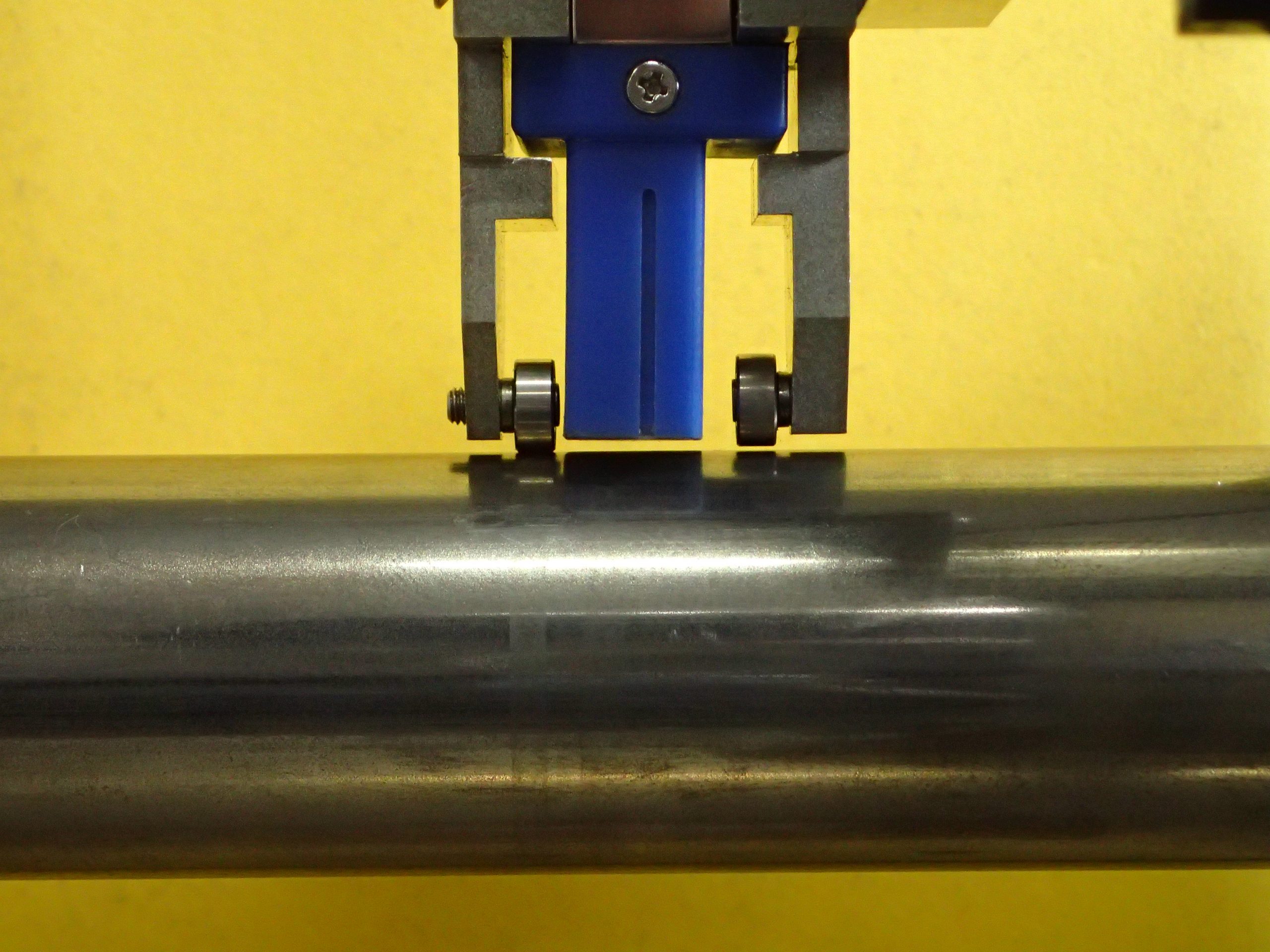

Sensor is non-contact

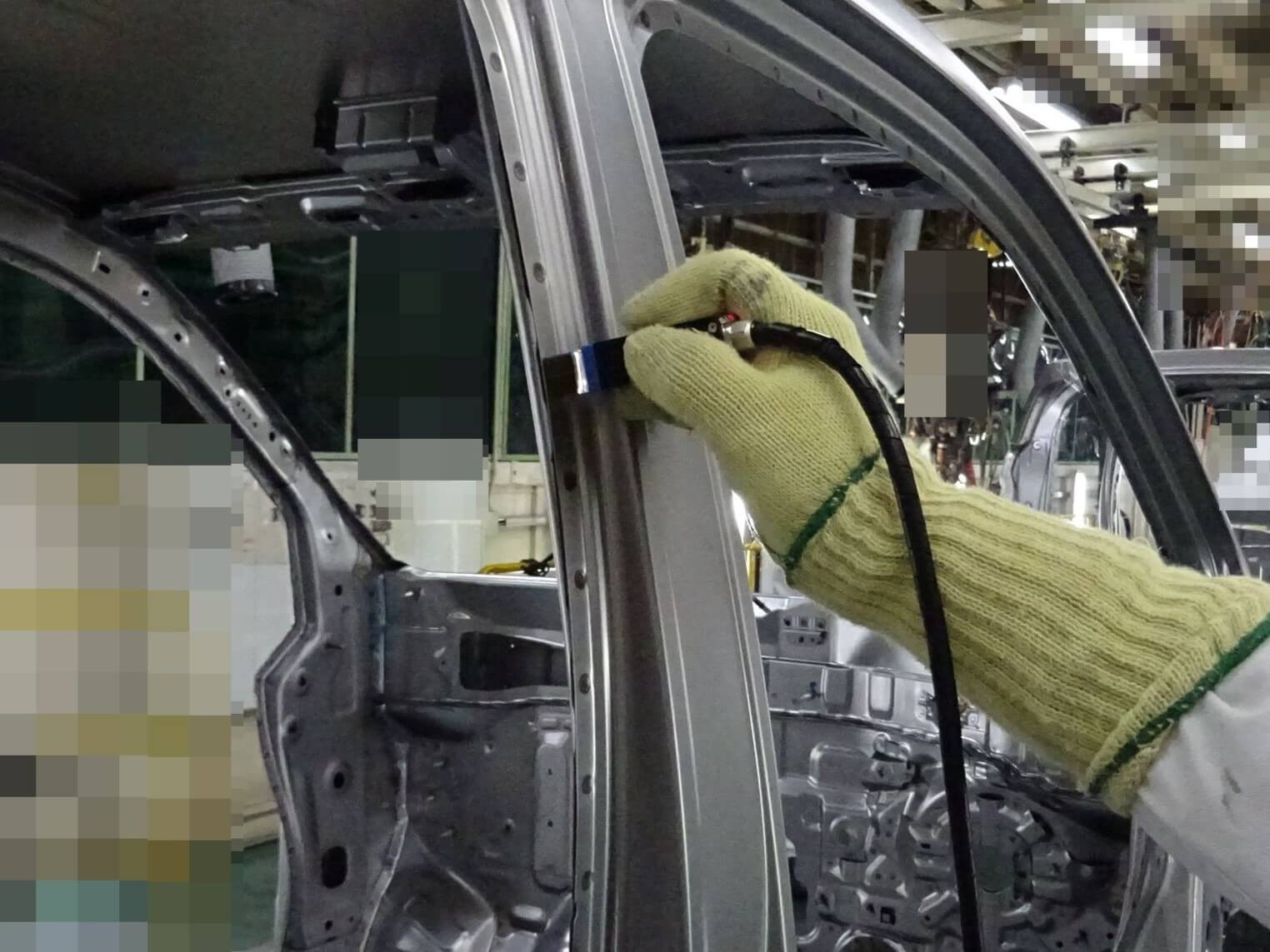

Inspection scenery
Inspection scenery
Reports, Case Studies

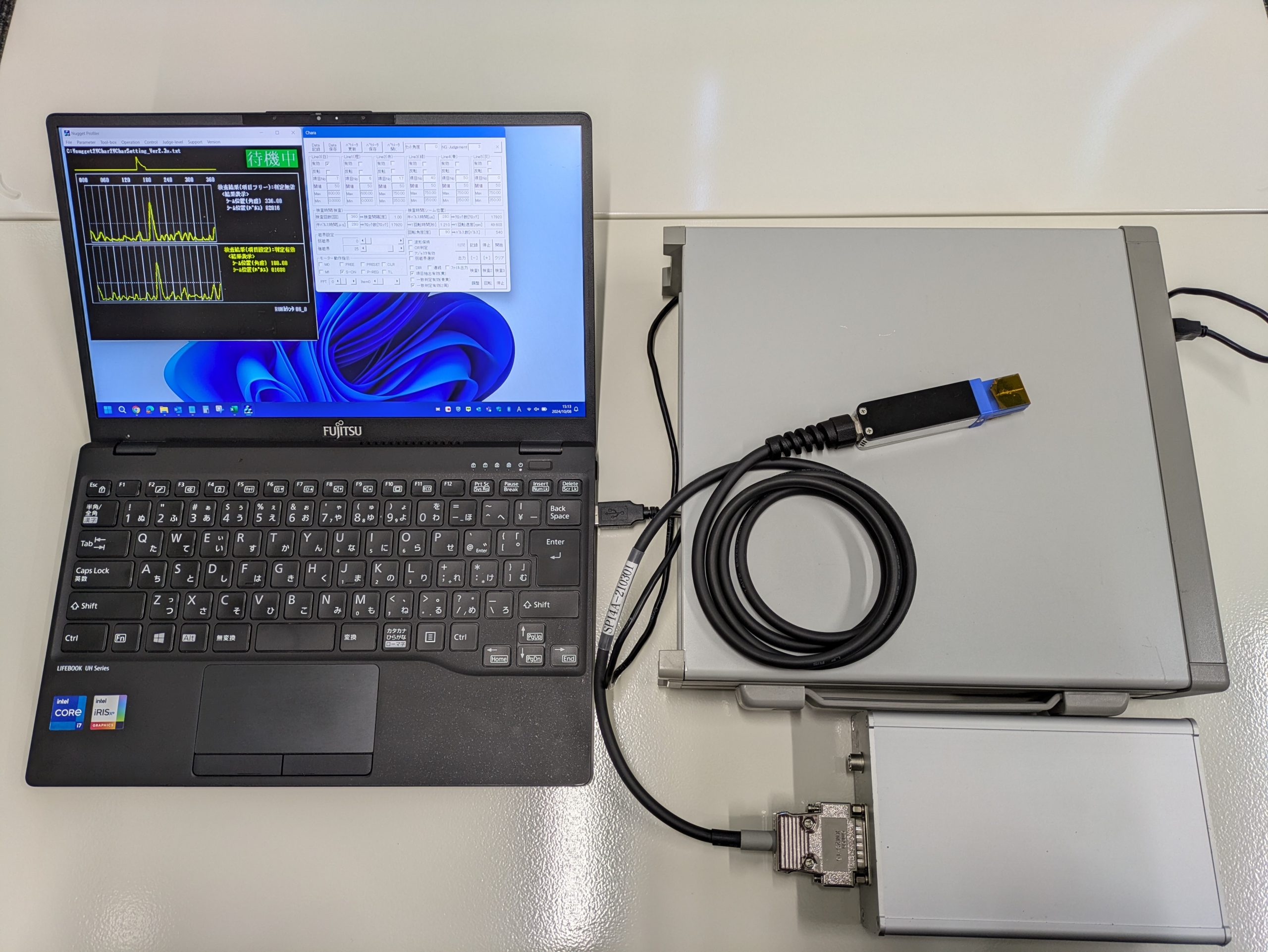

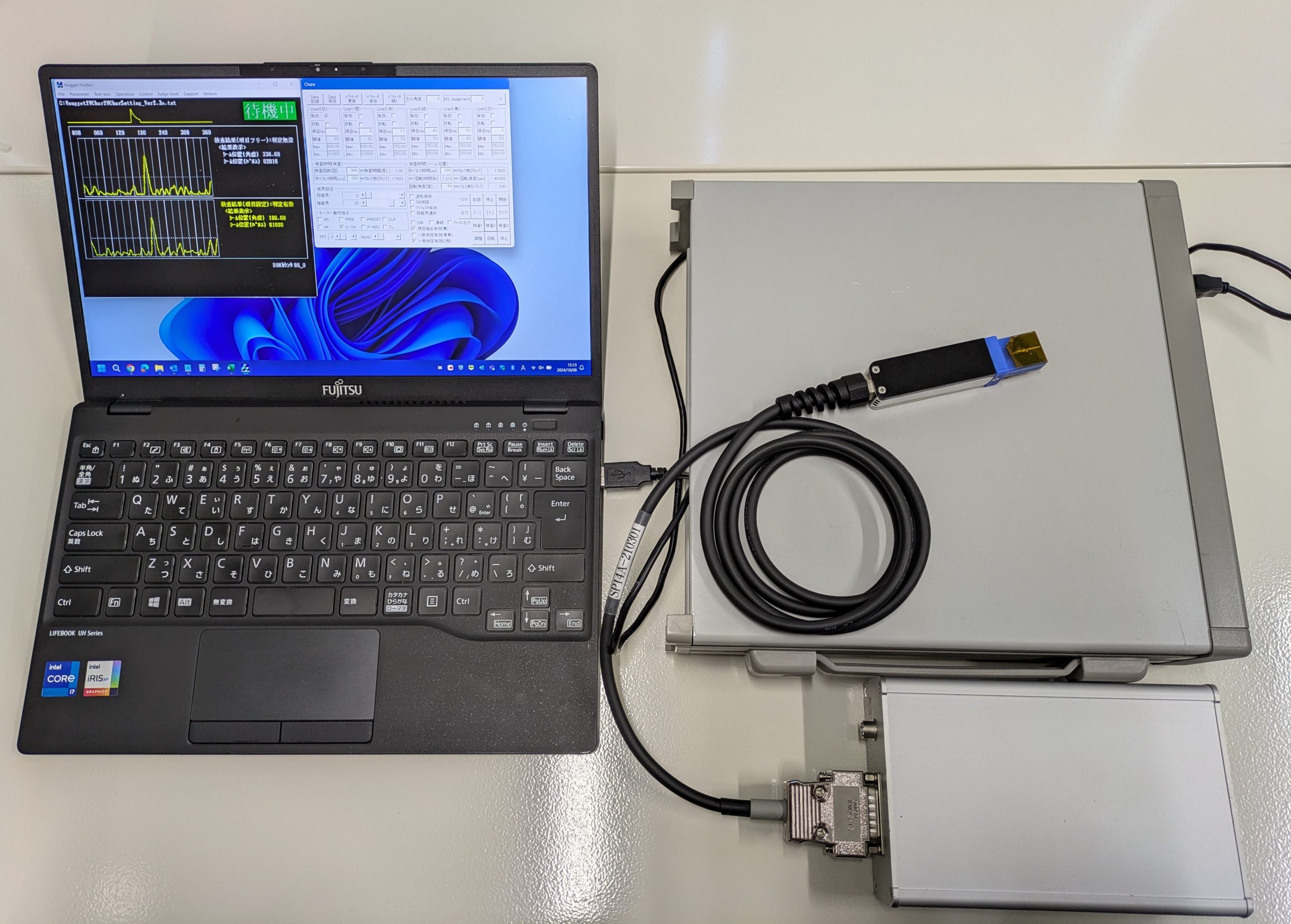

Equipment Composition and Specifications
The connection between the main unit and user equipment is individually customized.
Composition
Main unit SSF01
Size
280(W)×260(D)×66(H)mm
Notes
Communication method is based on RS422 and individually customized.
Composition

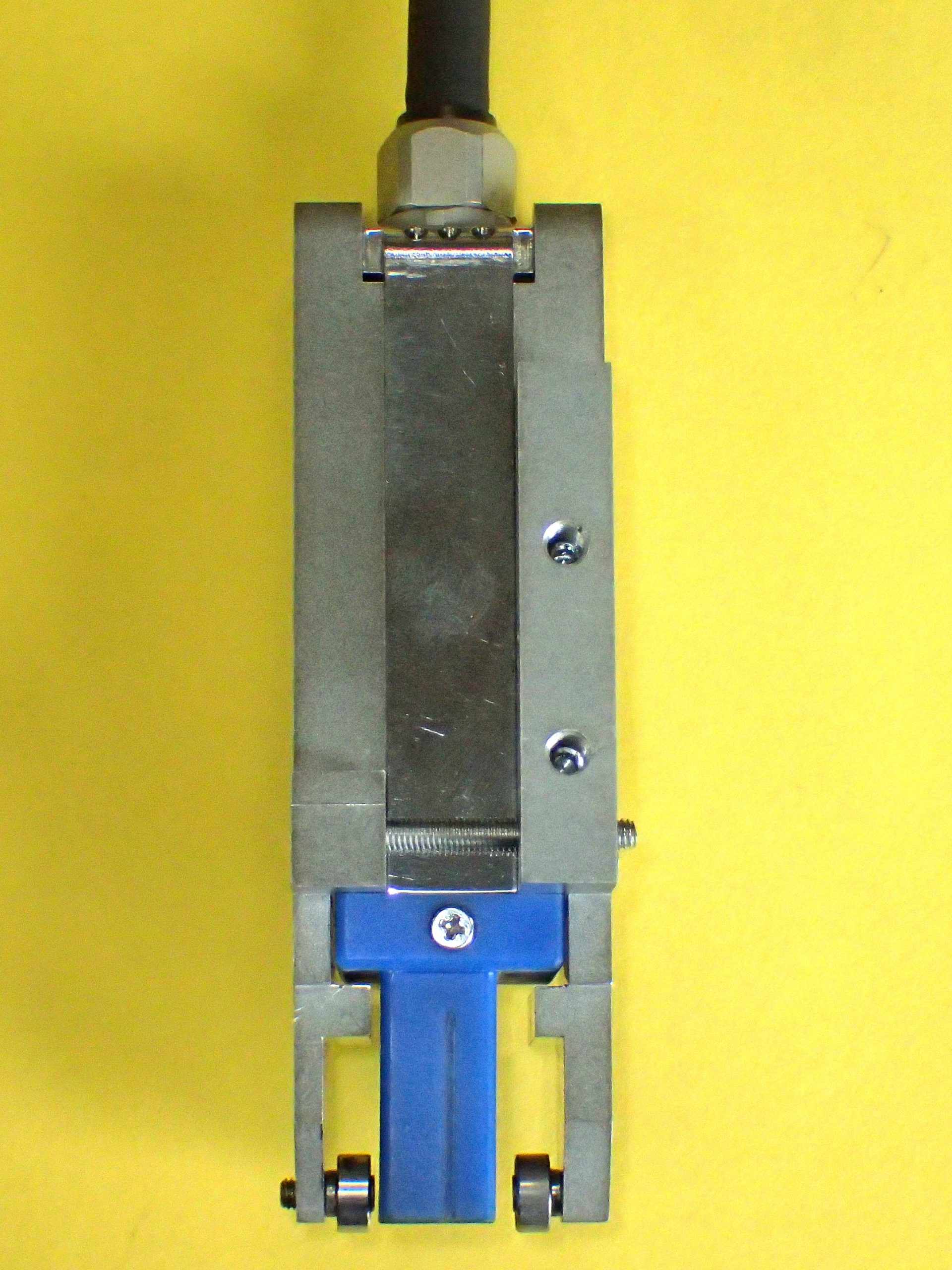

Sensor probe SP14A
Size
20(W)×20(D)×100(H)mm
Notes
Weight of sensor and bracket is 350g(12.3oz).
Equipment Composition
| Model | SSF01 |
|---|---|
| Inspection parameter settings | Can be configured on the inspection screen. (Settings can be saved to a file.) |
| Material of sensor end | FR |
| Option | PLC communication settings |
| OS | Windows10 / 11 |
| Operating temperature range | 5°C to 40°C |
| Operating humidity range | 80% RH max. (non-condensing) |
| Power supply | 85 to 240 V AC, 0.5 A (only for the main unit) |
